Series 300

Starting at$12,285

300 Zero-Turn MidMount™ Mowers

Conquer straightaways with the intense mowing power of the Grasshopper 300 Series. Featuring Vanguard Big Block and Kubota MaxTorque engines, these MidMount mowers pack plenty of torque and horsepower into their surprisingly compact design—making them ideal for commercial landscapers and large-acreage homeowners.

Book Demo Financing Brochure

*Some photography shown may include optional equipment.

6.88 Max. Acres per Hour (APH) *Actual results may vary. Details here.
52” | 61”Deck Sizes Learn more about MidMount™ Mower Decks
8HT/M1 | 8F/M1 | 12F/M1 | 12HT/M1 | 16/M1

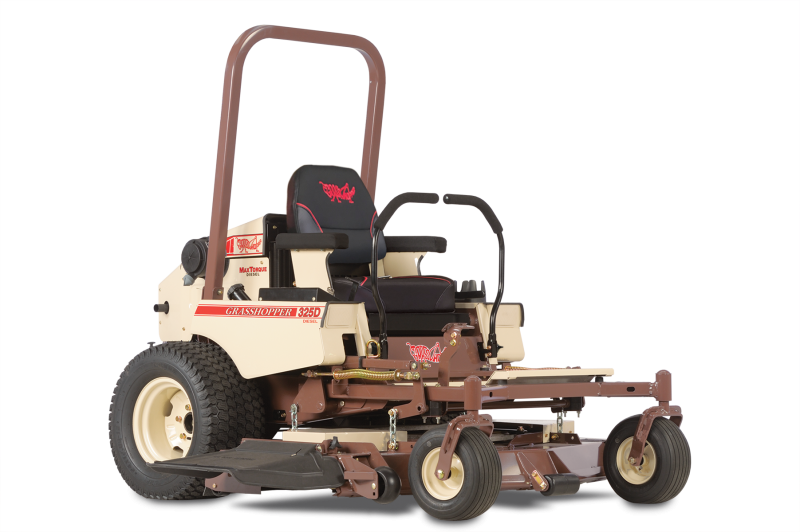

Model 325D

6.88Max. Acres per Hour (APH*)

52" Deck Sizes

8HT/M1 | 8F/M1 | 12F/M1 | 12HT/M1 | 16/M1 Collectors

The diesel-powered 325D is equipped with EPA Tier 4 compliant 898 cc, liquid-cooled Kubota MaxTorque™ engine and design-matched G2 transmission. This clean diesel model burns fuel at a lower consumption than gas-powered mowers and will bring a more efficient performance to your #MowDay.

*Actual results may vary. Details here.

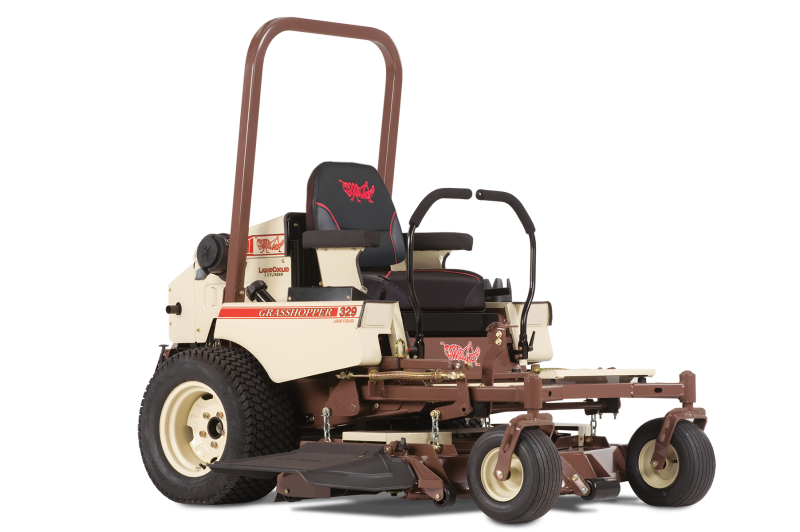

Model 329

6.88Max. Acres per Hour (APH*)

52", 61", 72" Deck Sizes

8HT/M1 | 8F/M1 | 12F/M1 | 12HT/M1 | 16/M1 Collectors

Built tough for extended service life, the model 329 combines powerful performance with True ZeroTurn™ maneuverability and fuel economy to help maximize your profitability and reduce fixed costs. The 329 features a 962 cc, 3-cyclinder Kubota MaxTorque™ engine and design-matched G2 transmission.

*Actual results may vary. Details here.

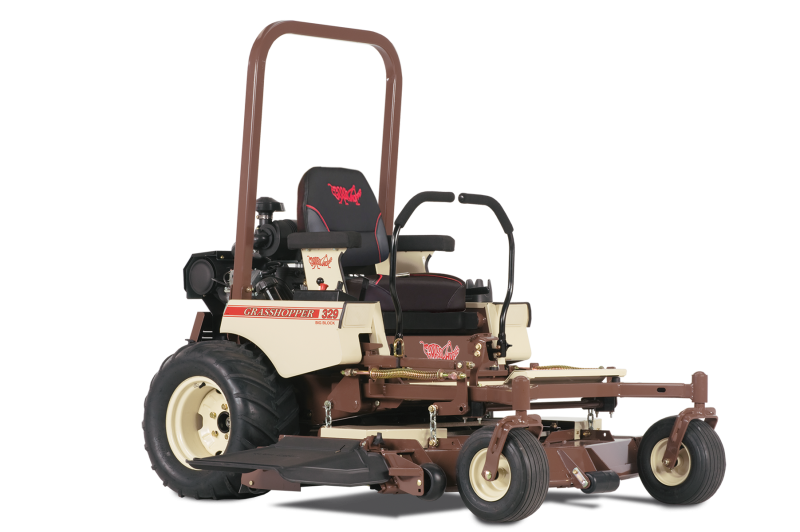

Model 329B

6.88Max. Acres per Hour (APH*)

52", 61" Deck Sizes

8HT/M1 | 8F/M1 | 12F/M1 | 12HT/M1 | 16/M1Collectors

With an 896 cc Big Block V-Twin engine and a design-matched G2 transmission, the 329B offers intense mowing power and efficient performance in a compact MidMount mower design. The 329B can be fitted with either a 52- or 61-inch deck and is compatible with multiple PowerVac™ Collection Systems.

*Actual results may vary. Details here.

Model 335B

6.88Max. Acres per Hour (APH*)

61" Deck Sizes

8HT/M1 | 8F/M1 | 12F/M1 | 12HT/M1 | 16/M1Collectors

Bring intense power and professional performance to your cut with the model 335B True ZeroTurn™ riding lawn mower. The 335B features a design-matched G2 transmission, a massive 993 cc Big Block V-Twin engine, and can be equipped with a 61- or 72-inch deck.

*Actual results may vary. Details here.

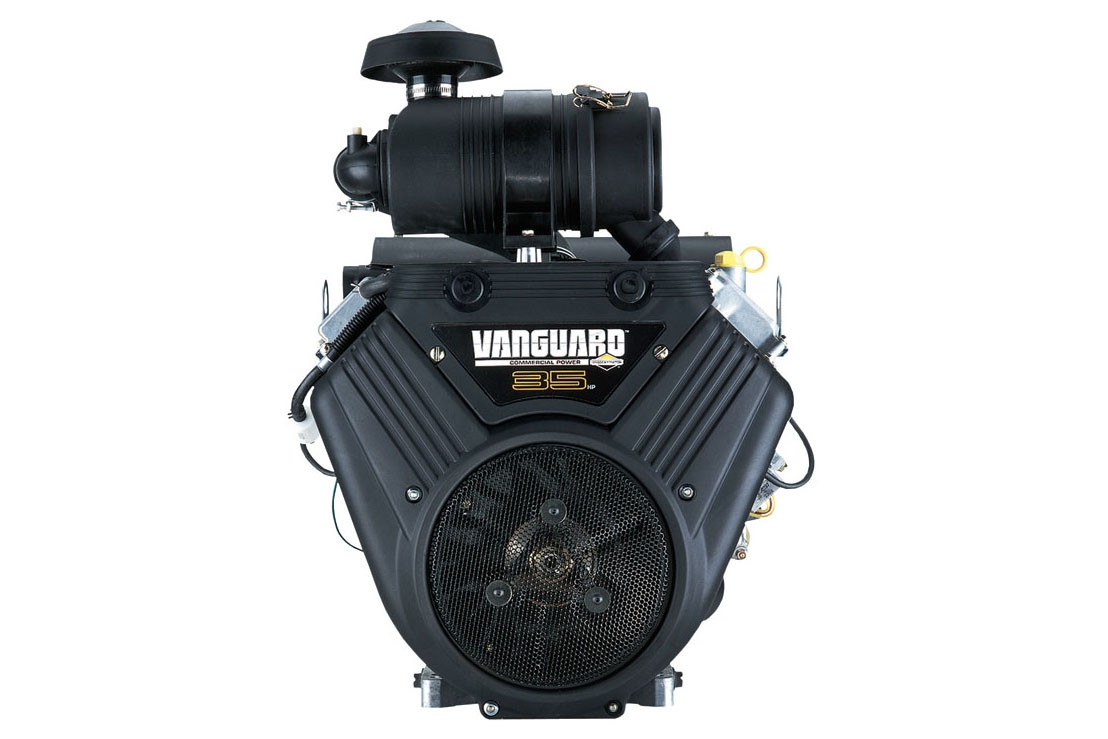

Engine

The 329B and 335B contain Briggs & Stratton® air-cooled OHV Vanguard Big Block engines designed with a horizontal crankshaft for longer life and less maintenance. Where the engines differ is power capacity. The 329B is fit with an 896 cc Big Block while the 335B’s engine comes in at a slightly more powerful 993 cc. If you prefer liquid-cooled Kubota engines, the 329 is armed with a 962cc 3-cylinder Kubota MaxTorque, and the 325D boasts the 898 cc EPA Tier 4 Compliant diesel-powered Kubota MaxTorque™ model.

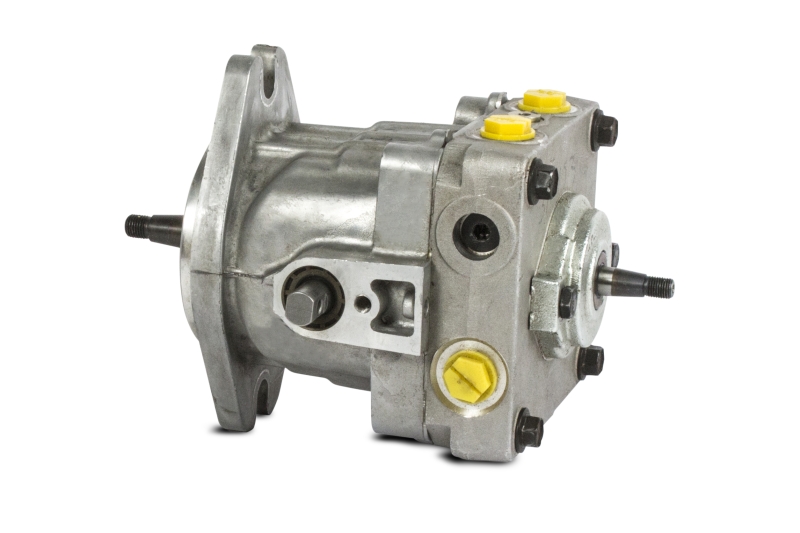

Design-Matched G2 Transmission

The 300 Series MidMount Mowers are equipped with a robust, design-matched G2 transmission that features a 7-micron absolute filter and a CoolFan™ hydro cooling system. This G2 transmission also features a HydroGear variable displacement 16 cc piston-pumps and high-torque Parker wheel motors.
The G2 transmission also boasts a 1,000-hour fluid change interval that reduces the need for routine maintenance.

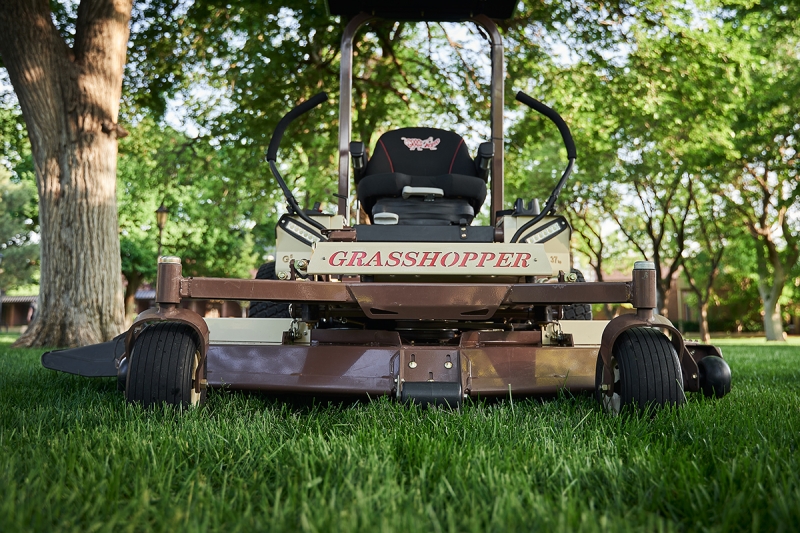

Heavy-Duty Deck

Grasshopper extra-deep 5.5” decks are made from heavy-gauge formed steel and reinforced with an anvil leading-edge. Complete with specially designed cutting chambers to enhance airflow, our decks also contain Sentry™ spindles with 8-inch flanges anchored in a 6-bolt pattern. The formed steel spindle planes are fabricated from double-layered steel laminate and combine with the spindles to form a triple-strength deck that is nearly 1-inch thick in stress zones. Grasshopper decks are built to keep the blades level and deliver a high-quality finish every #MowDay.

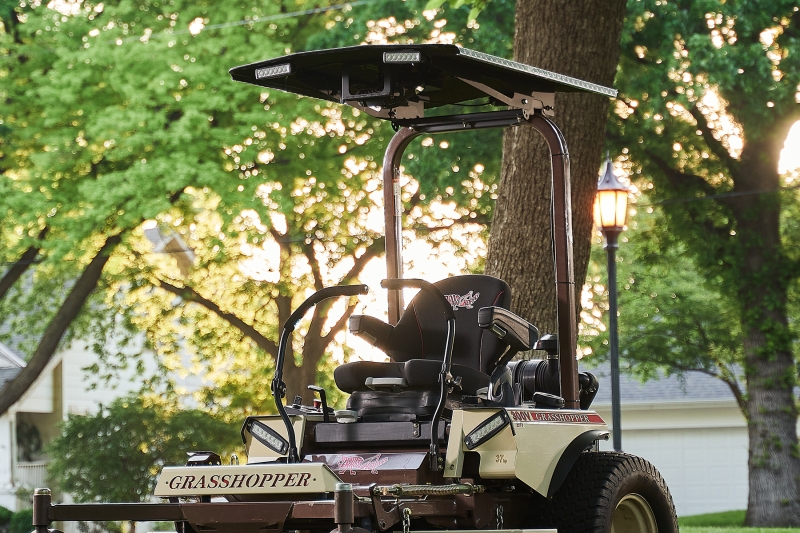

Vigilant Operator Presence System™

Our low profile Rollover Protection System (ROPS) comes with an adjustable seatbelt, dampened steering levers that return to neutral from both forward and reverse, and interlock switches that shut down the engine immediately if the operator leaves the seat while the PTO is engaged or the steering levers are in drive position.

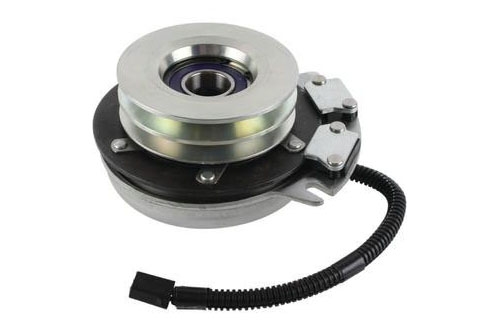

High Temperature Clutch Cut-Out

The 329 and 325D liquid-cooled models are equipped with a High Temperature Clutch Cut-Out that automatically disengages the PTO if the engine temperature reaches a certain point to prevent long-lasting damage.

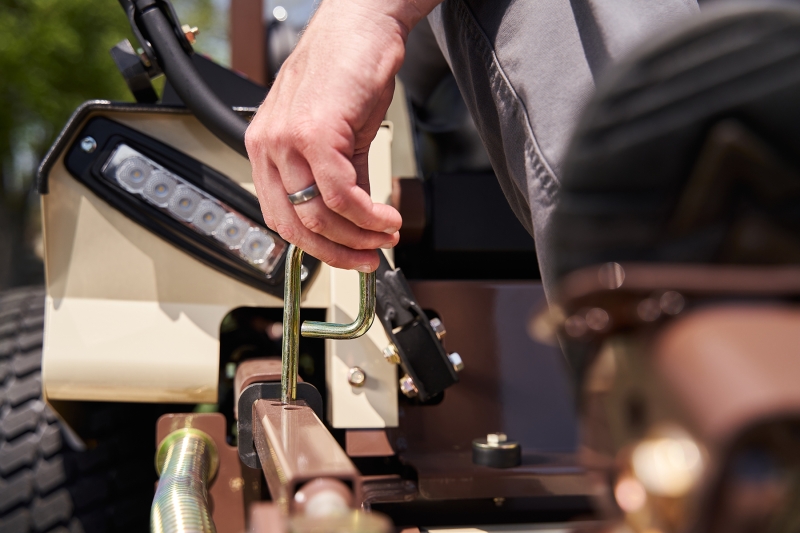

QuikAjust® DropPin™ Height Adjustment

With the QuikAjust® DropPin™ Height Adjustment raising and lowering the deck of your mower has never been more convenient. Easily adjust your deck’s height anywhere from 1 to 5 inches with a single foot pedal and drop pin for ultimate precision and a smoother finish.

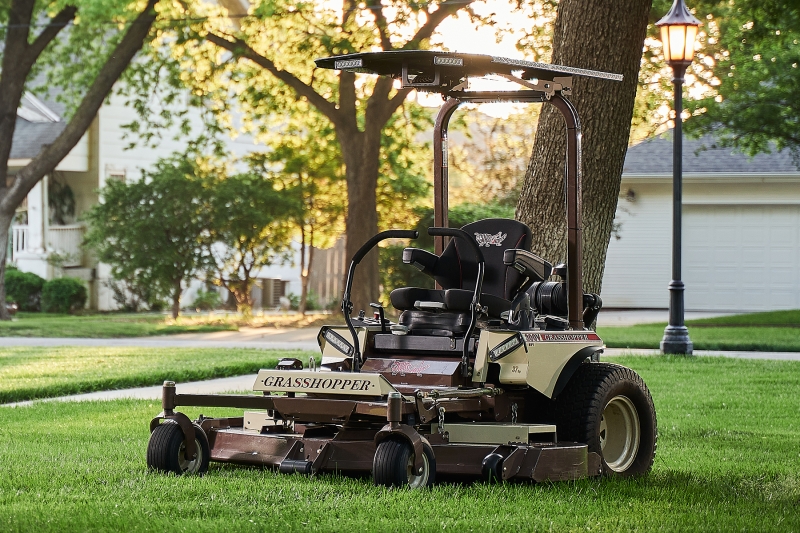

Ultimate Operator Station™

Our Ultimate Operator Station is equipped with a deep-cushioned, deluxe premium high-back comfort seat that features a coil-spring suspension, padded lumbar support and armrests.The operator station is iso-mounted, eliminating vibration before it reaches the operator and both the padded seat and foldable armrests are covered in scuff-resistant, CoolTemp Cordura® fabric. Additionally, the operational controls, including the throttle, ignition, choke, and more are all well positioned for visibility and ease of reach.
The operator station is equipped with ComfortReach™ adjustable Hydra-Smooth™ dual steering levers that allow for one- or two-handed operation. The levers automatically return to natural from either forward or reverse positions.

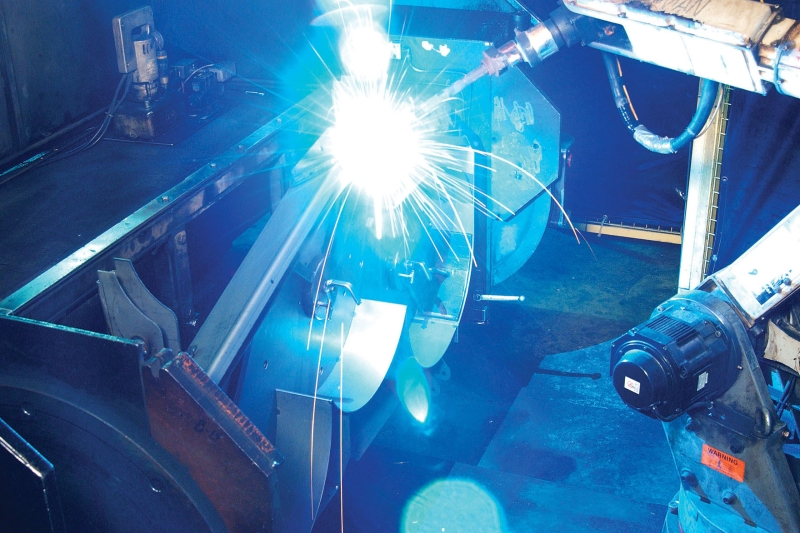

Rugged Construction

All 300 series MidMount riding lawn mowers are constructed from robotically-welded, formed steel and built to last decades. Engineered with a centered-bearing design that provides greater load-bearing capacity, these mowers can handle the weight of the operator, fuel, and high-capacity collector with ease. The 300 series is complete with a tough-as-nails powder-coated finish that is fusion-bonded—ensuring these models will resist rust, chips, and whatever else nature throw its way.

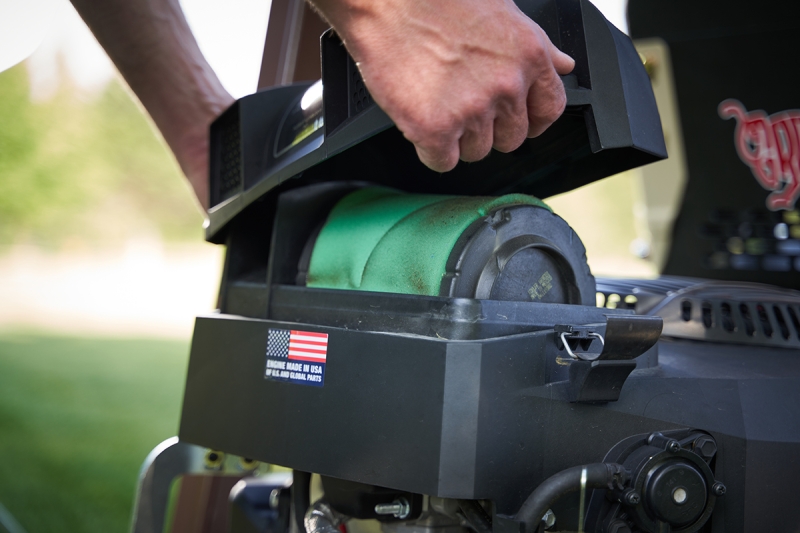

Reduced Maintenance

Every mower in the 300 Series has just five Access-Eze™ lubrication points and is equipped with self-tensioning belts, helping to cut down on maintenance time by 80%, making your day-to-day mowing operations easier.

Warranty

Commercial Use: 3 year unlimited hour limited warranty. First two years covering parts and labor and last two years only covering parts.
Residential Use: 4-year or 800 hours limited warranty (whichever comes first) covering parts and labor.

Engine

Design-Matched G2 Transmission

Heavy-Duty Deck

Vigilant Operator Presence System™

High Temperature Clutch Cut-Out

QuikAjust® DropPin™ Height Adjustment

Ultimate Operator Station™

Rugged Construction

Reduced Maintenance

Warranty

Options & Add-Ons

Customize your ride with extra comfort, pro speed, and productivity-boosting features. It’s everything you need to take your mowing experience to the next level.

DuraFlex™ Suspension Fork Kit

Optional suspension forks along front tires that absorb the impact of rough terrain to maintain a level cut and can also be set up for use with PowerVac™ collectors.



SpeedTrimming™ Roller Kits

This heavy-duty, anti-scalp roller kit speeds up close trimming near buildings, fences, retaining walls and other landscaping features. Available for 61” decks and both the left and right side of the cutting deck.

Side Discharge Control Kit

Add this kit to easily control the discharge of your mower deck—switching from side to rear discharge in order to avoid putting clippings in flower beds or on sidewalks and other unwanted areas.



Premier Suspension Seat

Low-profile seat with a nine-inch fore and aft adjustment and ergonomic features including an integrated shock absorber, adjustable backrest with a lumbar support mechanism, adjustable armrests, and a retractable seatbelt.

Rear Discharge Deck

Dedicated rear-discharge decks throw grass clippings out the back allowing you to trim on either side of the deck saving time and minimizing cleanup of discharged clippings.

Filter Minder® Kit

The optional Filter Minder add-on alerts the operator when airflow is restricted in the air canister on dual-element air filters.



Down Discharge™ Mulching Package

Designed from years of innovative airflow research, this optional package directs clippings deep into the grass bed for a cleaner cut and healthier turf.

Custom Cordura® Weather Cover

Weather-resistant, Grasshopper branded cover made from durable Cordura fabric perfect for protecting your mower during storage or between uses.

Wide Seat Conversion Kit

Conversion kit provides additional seating room and a more comfortable ride for larger operators. Requires seat belt extension.

Yellow Beacon Light

Attach our Yellow Beacon Light onto your OPS or ROPS to provide greater visibility for your mower in high traffic areas.

LED Work Lights

LED work lights provide long-lasting, power-efficient light for improved visibility across late night and early morning mowing.

Sunshade Canopy Aluminum

Durable and abrasion resistant, this diamond-plated aluminum canopy limits operator exposure to direct sunlight and reduces eye strain for increased comfort.



Sunshade Canopy Vinyl

Limit your exposure to direct sunlight and reduce eye strain with this lightweight, water repellent, UV-resistant vinyl canopy.



Foldable (ROPS)

Foldable ROPS allows the two-post ROPS to be lowered for easy mowing under low-hanging trees and other overhead obstacles.

Electric Height Adjustment

Electric kit is available for 200 and 300 Series models (not for V Series), and a Hydraulic kit is available for 61- and 72-inch decks on 300 LC and on 400 LC Series Models


QuikAjust® Tilt™ Levers

These steering levers offer an easy nine-inch range of adjustment, allowing operators of all shapes and sizes to maintain a natural arm and wrist position during long hours of mowing.

Michelin® X® Tweel® Airless Turf Tires

Smooth tread castor wheel that performs like pneumatic tire without the inconvenience and downtime associated with flats.

Extended Steering Levers

Optional extended steering levers provide an additional two inches of leg clearance for a more comfortable and customizable ride.

Bar-Tread Low-Pressure Tires

Optional low-pressure, high-floatation bar-tread tires flex with the terrain for maximum traction and minimal scuffing caused by wheel spin-out.

Weather Cover

Weather-resistant, black Cordura® fabric cover with embroidered Grasshopper logo keeps seat and engine area protected during storage or between mowings. Slips over ROPS, with Velcro closure to secure the opening.

Rear Discharge Deck

Dedicated rear-discharge decks throw grass clippings out the back allowing you to trim on either side of the deck saving time and minimizing cleanup of discharged clippings.





Mower Decks

When it comes to mower decks, Grasshopper puts metal where it matters. Constructed from heavy-duty formed steel, not plastic like other brands, Grasshopper decks are anvil-edged and deliver a rugged durability that lasts for decades. Not only are the decks built to last, but with specially designed cutting chambers, they are crafted to enhance airflow and improve performance.

Even better, all FrontMount mower decks come standard with PowerFold. The Grasshopper exclusive electric deck lift feature that makes every thing from maintenance and deck height adjustment as simple as touching a button.

View Mower Decks

Attachments & Implements

Handle any lawn care job throughout the year and make the most out of yourGrasshopper Zero-Turn with our complete range of mower attachments.

View All Attachments

FrontMount PowerVac™ Collection Systems

Designed from decades of airflow research, the PowerVac Collection System is the most powerful and efficient piece of leaf-collecting equipment around.

Shielded Sprayer

With aerodynamically designed shields and faster, more precise application, the Shielded Sprayer will help boost your efficiency–even the windiest of days.

Edge-EZE™ Edger

Clean up sharp edges and cut out hand-held trimming with the EDGE-EZE Edger. Available for all Grasshopper mowers.

Compare Models

Download the full spec sheet below to review everything from deck size and dimensions to engine, electrical systems, and other mower parts to ensure you are getting the perfect model for your lawn care application.

Side discharge decks convert to optional mulching or vacuum. All specifications and information displayed on this Web site are subject to change without notice. Download Full Specs

Type/Horsepower/Cylinders
Kubota, 3-cyl., MaxTorque™
Displacement
54.8 cu. in. (898 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Liquid
Fuel
Diesel - No. 2
Fuel Capacity
12 U.S. Gal. (45.4 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type.

DECK
DuraMax
Mulching Package #
504567(52), 504569(61), 504571(72)
DURAMAX® DECK SIZE
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
*
– 61" Deck
*
– 72" Deck
*
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
(3) 18 in. (45.7 cm)
– 61" Deck
(3) 21 in. (53.3 cm)
– 72" Deck
(3) 25 in. (63.5 cm)
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Brakerless, diesel quick heat glow plug
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, combination electronic fuel gauge/hour meter, glow plug, ignition and push/pull PTO switches.
Work Lights
Optional - LED
Hour Meter
Standard

Type
Design-matched G2 hydrostatic system with auxillary cooling fans, HydroGear variable displacement 16 cc piston-type pumps and high-torque Parker wheel motors.
Filtration/Hydro Fluid
7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed
(52-) 0 - 10.0 mph (0 - 16.1 kph) forward (61- and 72-) 0 - 10.5 mph (0 - 16.9 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
NA

MidMount
Drive Wheels - Standard
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
23x10.50x12 turf, 4-ply rated
– 61" Deck
24x12.00x12 turf, 4-ply rated
– 72" Deck
24x12.00x12 turf, 4-ply rated
Drive Wheels – Optional (4-ply rated)
(61- and 72-) 24x12.00x12 bar tread, 4-ply rated
Front Wheels – All Models
13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
FrontMount
Drive Wheels – Standard (4-ply rated)
NA
Drive Wheels – Optional (4-ply rated)
NA
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41" Deck
NA
– 42" Deck
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Height (Seat Back)
47.0 in. (119.4 cm)
Height (Seat Cushion)
31.5 in. (80.0 cm)
Height (ROPS)
69.5 in. (176.5 cm)
Length
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
82.5 in. (209.6 cm)
– 61" Deck
84.0 in. (203.4 cm)
– 72" Deck
87.5 in. (222.3 cm)
Length (FrontMount Power Unit + DuraMax® Deck - Folded Up)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Deck Width (Side Discharge)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
65.5 in. (166.5 cm)
– 61" Deck
74.5 in. (189.2 cm)
– 72" Deck
85.5 in. 227.3 cm)
Deck Width (Mulch*)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
53.5 in.* (135.9 cm)
– 61" Deck
62.5 in.* (158.8 cm)
– 72" Deck
73.5 in.* (186.7 cm)
FrontMount PowerUnit Only (Width/Length)
NA
FrontMount Power Unit (Wheelbase)
NA

(Uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
1310 lbs. (594.2 kg)
– 61" Deck
1360 lbs. (616.9 kg)
– 72" Deck
1450 lbs. (657.7 kg)
FrontMount Power Unit Only (uncrated)
NA
FrontMount Deck Only - Side Discharge (uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Mulching Package
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
29 lbs. (13.2 kg)
– 61" Deck
36 lbs. (16.3 kg)
– 72" Deck
44 lbs. (20.0 kg)

All specifications and information displayed on this Web site are subject to change without notice.

Type/Horsepower/Cylinders
Kubota, MaxTorque™
Displacement
58.7 cu. in. (962 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Liquid
Fuel
Gasoline - unleaded
Fuel Capacity
12 U.S. Gal. (45.4 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type.

DECK
DuraMax
Mulching Package #
504567(52), 504569(61), 504571(72)
DURAMAX® DECK SIZE
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
*
– 61" Deck
*
– 72" Deck
*
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
(3) 18 in. (45.7 cm)
– 61" Deck
(3) 21 in. (53.3 cm)
– 72" Deck
(3) 25 in. (63.5 cm)
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, combination electronic fuel gauge/hour meter, ignition and push/pull PTO switches. Choke integrated with throttle lever.
Work Lights
Optional - LED
Hour Meter
Standard

Type
Design-matched G2 hydrostatic system with auxillary cooling fans, HydroGear variable displacement 16 cc piston-type pumps and high-torque Parker wheel motors.
Filtration/Hydro Fluid
7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed
(52-) 0 - 10.0 mph (0 - 16.1 kph) forward (61- and 72-) 0 - 10.5 mph (0 - 16.9 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable HydraSmooth™ dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
NA

MidMount
Drive Wheels - Standard
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
23x10.50x12 turf, 4-ply rated
– 61" Deck
24x12.00x12 turf, 4-ply rated
– 72" Deck
24x12.00x12 turf, 4-ply rated
Drive Wheels – Optional (4-ply rated)
24x12.00x12 bar tread, 4-ply rated
Front Wheels – All Models
13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
FrontMount
Drive Wheels – Standard (4-ply rated)
NA
Drive Wheels – Optional (4-ply rated)
NA
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41" Deck
NA
– 42" Deck
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Height (Seat Back)
47.0 in. (119.4 cm)
Height (Seat Cushion)
31.5 in. (80.0 cm)
Height (ROPS)
(52-) 70.0 in. (177.8 cm) (61- and 72-) 69.5 in. (176.5 cm)
Length
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
82.5 in. (209.6 cm)
– 61" Deck
84.0 in. (203.4 cm)
– 72" Deck
87.5 in. (222.3 cm)
Length (FrontMount Power Unit + DuraMax® Deck - Folded Up)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Deck Width (Side Discharge)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
65.5 in. (166.5 cm)
– 61" Deck
74.5 in. (189.2 cm)
– 72" Deck
85.5 in. 227.3 cm)
Deck Width (Mulch*)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
53.5 in.* (135.9 cm)
– 61" Deck
62.5 in.* (158.8 cm)
– 72" Deck
73.5 in.* (186.7 cm)
FrontMount PowerUnit Only (Width/Length)
NA
FrontMount Power Unit (Wheelbase)
NA

(Uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
1310 lbs. (594.2 kg)
– 61" Deck
1360 lbs. (616.9 kg)
– 72" Deck
1450 lbs. (657.7 kg)
FrontMount Power Unit Only (uncrated)
NA
FrontMount Deck Only - Side Discharge (uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Mulching Package
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
29 lbs. (13.2 kg)
– 61" Deck
36 lbs. (16.3 kg)
– 72" Deck
44 lbs. (20.0 kg)

All specifications and information displayed on this Web site are subject to change without notice.

Type/Horsepower/Cylinders
B&S Vanguard Big Block, 2-cylinder
Displacement
54.6 cu. in. (896 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Air
Fuel
Gasoline - Unleaded
Fuel Capacity
12 U.S. Gal. (45.4 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type.

DECK
DuraMax
Mulching Package #
504567(52), 504569(61)
DURAMAX® DECK SIZE
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
*
– 61" Deck
*
– 72" Deck
NA
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
(3) 18 in. (45.7 cm)
– 61" Deck
(3) 21 in. (53.3 cm)
– 72" Deck
NA
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing on 52- and 61-inch decks. Cast iron on 72-inch deck.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure and parking brake warning lights, combination electronic fuel gauge/hour meter, ignition and push/pull PTO switches. Choke integrated with throttle lever.
Work Lights
Optional - LED
Hour Meter
Standard

Type
Design-matched G2 hydrostatic system with auxillary cooling fans, HydroGear variable displacement 16 cc piston-type pumps and high-torque Parker wheel motors.
Filtration/Hydro Fluid
7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed
(52-) 0 - 10.0 mph (0 - 16.1 kph) forward (61- and 72-) 0 - 10.5 mph (0 - 16.9 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
NA

MidMount
Drive Wheels - Standard
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
23x10.50x12 turf, 4-ply rated
– 61" Deck
24x12.00x12 turf, 4-ply rated
– 72" Deck
NA
Drive Wheels – Optional (4-ply rated)
24x12.00x12 bar tread, 4-ply rated
Front Wheels – All Models
13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
FrontMount
Drive Wheels – Standard (4-ply rated)
NA
Drive Wheels – Optional (4-ply rated)
NA
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41" Deck
NA
– 42" Deck
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Height (Seat Back)
47.0 in. (119.4 cm)
Height (Seat Cushion)
31.5 in. (80.0 cm)
Height (ROPS)
70.0 in. (177.8 cm)
Length
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
– 52" Deck
79.5 in. (201.9 cm)
– 61" Deck
81.0 in. (205.7 cm)
– 72" Deck
NA
Length (FrontMount Power Unit + DuraMax® Deck - Folded Up)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Deck Width (Side Discharge)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
65.5 in. (166.5 cm)
– 61" Deck
74.5 in. (189.2 cm)
– 72" Deck
NA
Deck Width (Mulch*)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
53.5 in (135.9 cm)
– 61" Deck
62.5 in.* (158.8 cm)
– 72" Deck
NA
FrontMount PowerUnit Only (Width/Length)
NA
FrontMount Power Unit (Wheelbase)
NA

(Uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
1140 lbs. (517.1 kg)
– 61" Deck
1190 lbs. (539.8 kg)
– 72" Deck
NA
FrontMount Power Unit Only (uncrated)
NA
FrontMount Deck Only - Side Discharge (uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Mulching Package
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
29 lbs. (13.2 kg)
– 61" Deck
36 lbs. (16.3 kg)
– 72" Deck
NA

All specifications and information displayed on this Web site are subject to change without notice.

Type/Horsepower/Cylinders
B&S Vanguard Big Block, 2-cylinder
Displacement
60.6 cu. in. (993 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Air
Fuel
Gasoline - Unleaded
Fuel Capacity
12 U.S. Gal. (45.4 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type.

DECK
DuraMax
Mulching Package #
504569(61), 504571(72)
DURAMAX® DECK SIZE
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
*
– 72" Deck
*
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
(3) 21 in. (53.3 cm)
– 72" Deck
(3) 25 in. (63.5 cm)
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure and parking brake warning lights, combination electronic fuel gauge/hour meter, ignition and push/pull PTO switches. Choke integrated with throttle lever.
Work Lights
Optional - LED
Hour Meter
Standard

Type
Design-matched G2 hydrostatic system with auxillary cooling fans, HydroGear variable displacement 16 cc piston-type pumps and high-torque Parker wheel motors.
Filtration/Hydro Fluid
7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed
0 - 10.5 mph (0 - 16.9 kph) 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
NA

MidMount
Drive Wheels - Standard
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
24x12.00x12 turf, 4-ply rated
– 72" Deck
24x12.00x12 turf, 4-ply rated
Drive Wheels – Optional (4-ply rated)
24x12.00x12 bar tread, 4-ply rated
Front Wheels – All Models
13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
FrontMount
Drive Wheels – Standard (4-ply rated)
NA
Drive Wheels – Optional (4-ply rated)
NA
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41" Deck
NA
– 42" Deck
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA

Height (Seat Back)
47.0 in. (119.4 cm)
Height (Seat Cushion)
31.5 in. (80.0 cm)
Height (ROPS)
70.0 in. (177.8 cm)
Length
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
81.0 in. (205.7 cm)
– 72" Deck
84.5 in. (214.6 cm)
Length (FrontMount Power Unit + DuraMax® Deck - Folded Up)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Deck Width (Side Discharge)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
74.5 in. (189.2 cm)
– 72" Deck
85.5 in. 227.3 cm)
Deck Width (Mulch*)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
62.5 in.* (158.8 cm)
– 72" Deck
73.5 in.* (186.7 cm)
FrontMount PowerUnit Only (Width/Length)
NA
FrontMount Power Unit (Wheelbase)
NA

(Uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
1190 lbs. (539.8 kg)
– 72" Deck
1280 lbs. (580.6 kg)
FrontMount Power Unit Only (uncrated)
NA
FrontMount Deck Only - Side Discharge (uncrated)
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
NA
– 72" Deck
NA
Mulching Package
– 41" Deck
NA
– 42" Deck
NA
– 44" Deck
NA
– 48" Deck
NA
– 52" Deck
NA
– 61" Deck
36 lbs. (16.3 kg)
– 72" Deck
44 lbs. (20.0 kg)

All specifications and information displayed on this Web site are subject to change without notice.

Lawn Advice & How To's

Choose the best mower for your suburban acreage

As properties grow, so do expectations for performance, comfort, and efficiency.

Read More

The financial case for buying vs. financing mowers in 2026

Financing a new mower is standard practice to keep cash in the bank, but considering interest rates, buying outright might be the smarter financial move.

Read More

Building a service menu that attracts and retains more lawn care clients

One of the best ways to make your company stand out is to provide additional services customers need.

Read More
